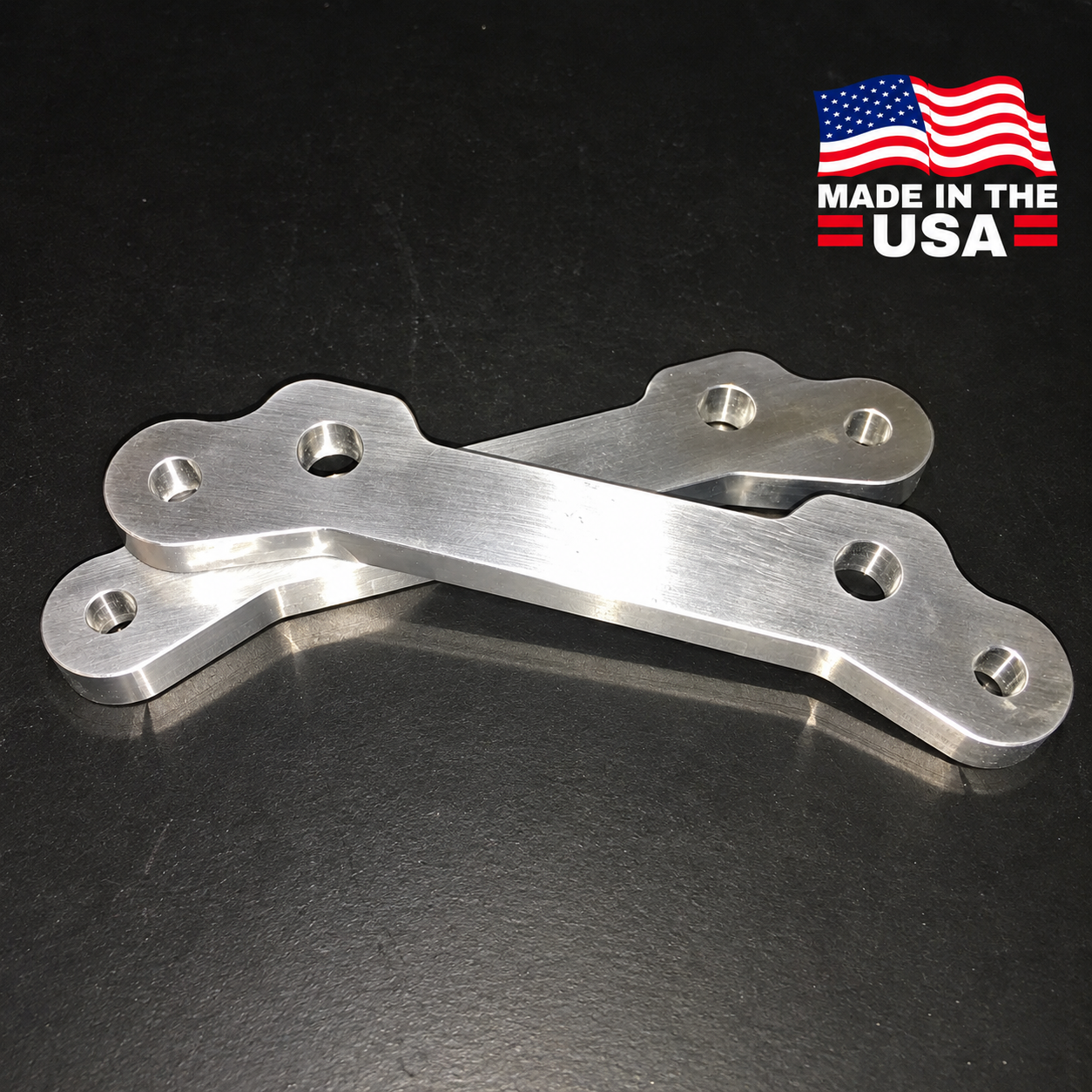

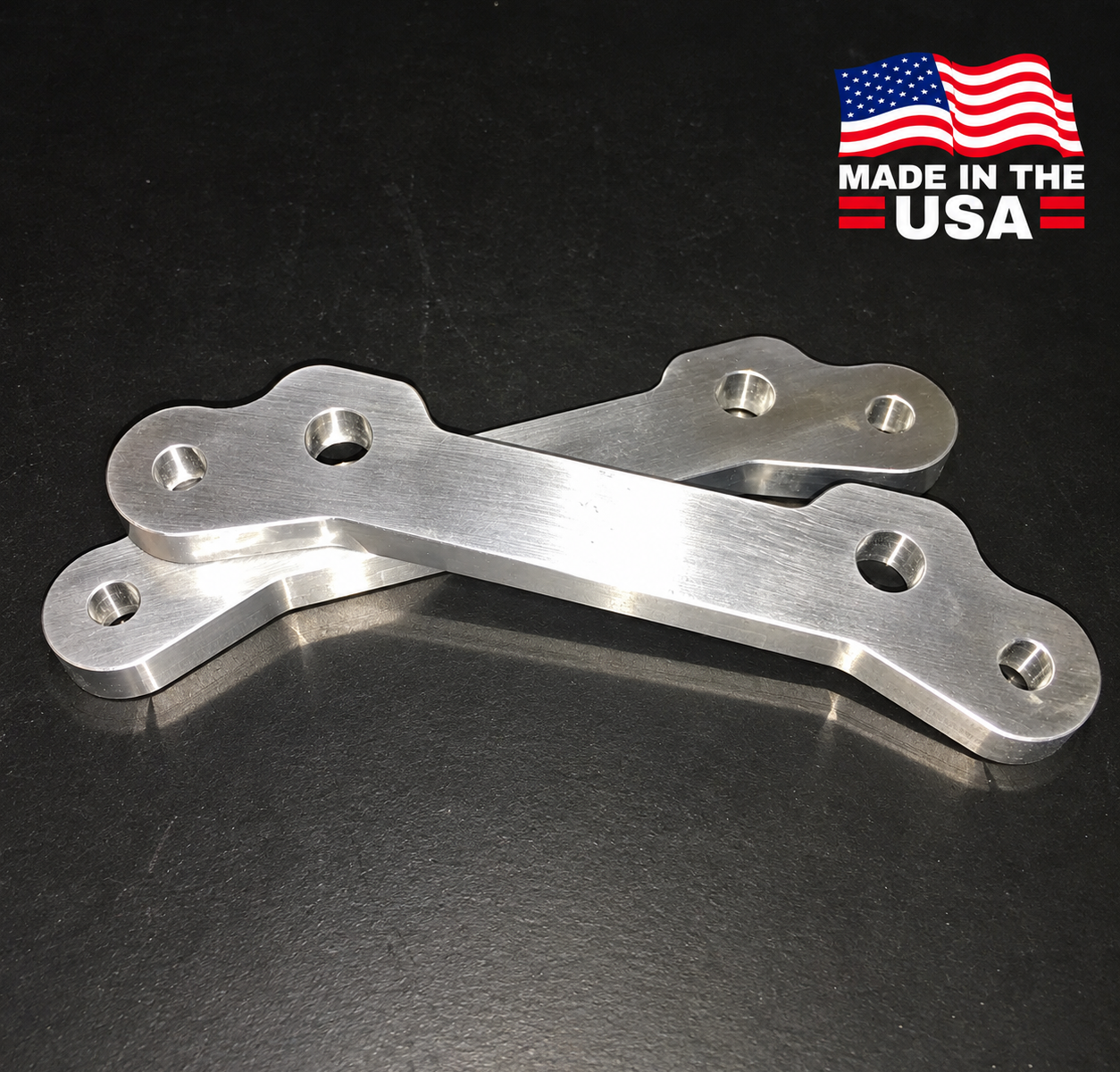

Corvette C5/6 Brake Conversion Brackets for ’70-’81 Camaro, Firebird & Trans Am

$89.95

The ’97-’13 Corvette brake conversion will bring your tall spindle equipped vehicle (’70-’81 Camaro, Firebird & T/A & other tall spindle equipped vehicles) up to today’s standards in braking capability.

With your choice of braking systems ranging from:

  • 12.8″ rotors w/pressure cast aluminum twin piston PBR calipers.
  • 13.4″ rotors w/pressure cast aluminum twin piston PBR calipers.
  • 14″ rotors aluminum six piston monobloc PBR Z06 calipers.

These conversion brackets will enable your vehicle to have an enormous leap in braking capabilities.  Made in the USA!

Description

The stock spindle caliper mounts will need to be removed. This is an easy modification that can be accomplished with a cut off wheel or sawzall with the spindles still on the vehicle. This allows clearance for the caliper & bracket to fit onto the O.E. spindles. Drilling and tapping of the spindle is necessary to mount up the conversion bracket to the spindle is necessary.  Hardware is not included, but instructions are included with the conversion brackets that detail the necessary modifications to perform this swap.

Master cylinders will need to be changed out for this conversion to provide the necessary hydraulic line pressure to actuate the Corvette calipers & give great pedal feedback for smooth application.

The ’97-’13 C5/C6 Corvette rotors are a hubless design. This design allows the C5/C6 rotors to slip on & off a seperate hub. A “cut down” hub or aftermarket hub is needed for this conversion. We sell the necessary hubs for your conversion if needed.

We are the only brake conversion company that utilizes a design methodology that encompasses track & real world testing, FEA CAD analysis, destructive testing and strain gauge data to prove out our designs before they hit the market. Our competitors can only benchmark off of us to try and catch up. Our testing and design add value that our customers demand.

With over twenty years in business we are proud to have countless vehicles featured in magazines, customers setting personal lap time bests on tracks across the country, owners winning trophies at national events and our products on vehicles in six continents.

Made in the USA!
